STB Multimeter

개요

Summary

Service

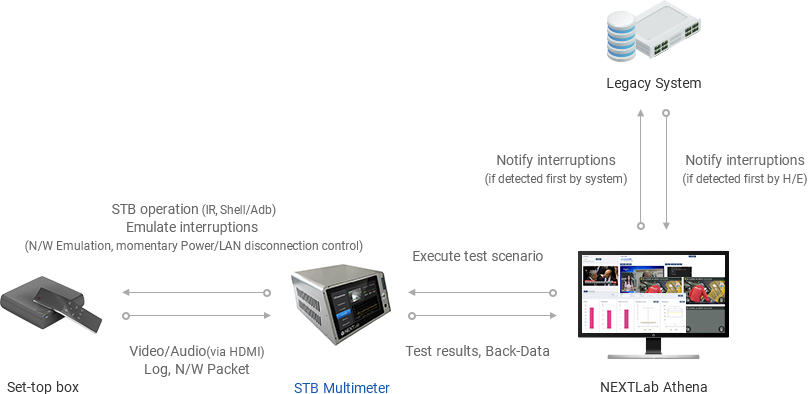

Conceptual Chart

Datasheet of STB Multimeter Visit our Youtube Channel

Introduction

STB Multimeter is a device which measures IPTV service and STB quality experienced by service subscribers in quantitative values. It automates STB operation and back-data extraction/analysis and provides significant reduction in operating costs compared to its competitors. The device enables automation of various tasks, including decision on superiority of STB performance, software problem verification and cause analysis, and monitoring of video/audio quality of IPTV services.

구성

Components

STB Multimeter

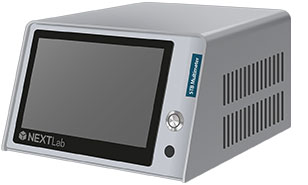

Front

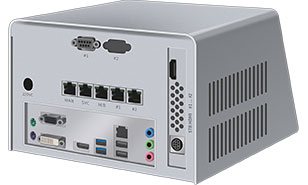

Rear
  • STB Multimeter
  • Cradle
  • Power adapter with corresponding power cord

NEXTLab
Athena

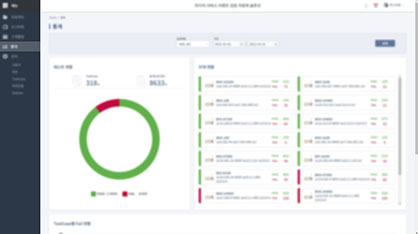

Statistics

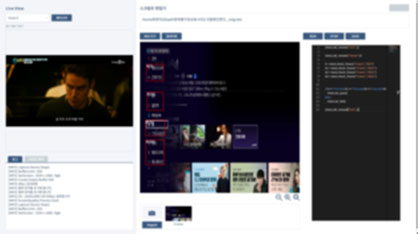

Script Editor

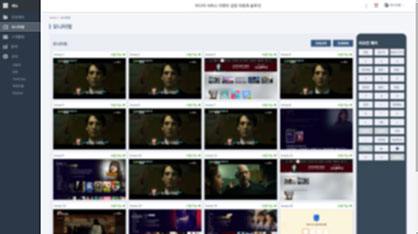

Monitoring

적용분야

Application

IPTV
Service Providers

IPTV broadcast quality monitoring
  • Real-time monitoring of no reference image/loudness quality
IPTV service quality monitoring
  • Upon detection of service interruption, reproduces interruption situation and collects back-data
  • Perform crazy monkey test to detect interruptions and collect back-data
STB Firmware verification
  • Automatically verify operation failure and collect back-data with scenario-based STB UI operation
  • Automatically verify STB operation failure and collect back-data by emulating interruptions (N/W Emulation, Firmware Up/Downgrade, momentary power/LAN disconnection, etc.)
  • Verify interruptions through collection of back-data during aging period
STB acceptance inspection and repairs for defective products
  • Automate pass-fail decisions by analyzing back-data collected from performance of scenario-based verification and aging test on newly received or defective STB
  • Verify STB performance level through channel switch time and booting time tests

STB Middleware
Developer

Middleware verification and cause analysis : Collect and verify back-data generated from STB operation in following modes
  • Middleware verification and cause analysis: Collect and verify back-data generated from STB operation in following modes
  • Scenario-based STB UI operation
  • Aging test

IPTV Service
Quality
Assessment QA

Automated test and result analysis for quality assessments for paid broadcasting channels
  • Channel switch time, channel volume level, set top box booting time, VOD advertisement period/frequency (all items are assessed quantitatively)
